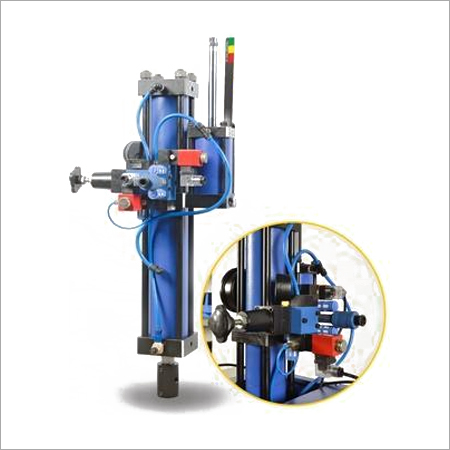

230V Hydro Pneumatic Cylinders

Name: 230V Hydro Pneumatic Cylinders
Brand: NATIONAL PNEUMATIC SYSTEMS
Price: 35000 INR
Availability: InStock

Price 35000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

230V Hydro Pneumatic Cylinders Specification

Temperature Range
-10C to +70C

Mounting Type
Flange/Foot mounting

Operating Pressure
Hydraulic up to 250 bar, Pneumatic up to 10 bar

Accessories
Sensors, Mounting brackets, Pressure gauge, Control valves, Tubing

Power Source
Electric-Pneumatic Hybrid

Efficiency
Up to 85%

Application
Pressing, Clamping, Punching, Riveting, Forming, Automotive and Industrial Automation

Flow Rate
Customized as per application

Connectivity Type
Electrical for control, Pneumatic for actuation

Sealing Type
Hydraulic Wear-resistant seals

Features
High pressure output, Energy saving, Compact design, Easy maintenance, Quick cycle time

Body Material
High-grade Steel/Aluminum Alloy

Type
Hydro Pneumatic Cylinder

Structure
Double Acting Cylinder with Integrated Hydro-Pneumatic Unit

Force
Adjustable, up to 15 Tons

Product Type
Hydropneumatic

Speed
High speed operation, 100-500 mm/sec (adjustable)

Voltage
230 Volt (v)

Weight
Varies by model, approx. 20-80 kg

Cycle Time
Less than 1 second per cycle (application dependent)

Port Size
G1/4 to G1/2

Control Method
Solenoid valve controlled

Usage Environment
Indoor, Industrial settings

Stroke Length
50 mm to 500 mm (customizable)

Surface Treatment
Powder coated/Anodized

Noise Level
Less than 70 dB

Cylinder Bore Diameter
32 mm to 200 mm

Safety Features
Pressure relief valve, Emergency stop

230V Hydro Pneumatic Cylinders Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
50 Pieces Per Month

Delivery Time
1 Week

Packaging Details
Wooden Boxes

Main Domestic Market
All India

230V Hydro Pneumatic Cylinders About

Hydraulic Cylinders

We are an authentic manufacturer, exporter, supplier and trader of Hydraulic Cylinders. This press cylinder is notable for its special attributes like low consumption of energy, well built construction, easy operating system, long shelf life and perfect finishing. It's reduced noise level is one of its key features. The Hydraulic Cylinders is suitable for clamping and straightening works. The usage of this machine can be noticed in bending, pressing, shaping and forming works of different types of materials.

Customizable Performance for Industrial Demands

Our hydro pneumatic cylinders are engineered for versatility, providing customizable stroke lengths and force outputs to suit various tasks in automation, automotive, and forming industries. Rapid cycle times, high-speed operation, and durable construction support challenging production schedules while ensuring energy-efficient functionality.

Reliable Safety and User-friendly Maintenance

Safety is prioritized with features like pressure relief valves and emergency stop functions, protecting personnel and equipment during operation. The sealed system with powder-coated or anodized surfaces resists wear, while modular designs permit straightforward maintenance and part replacement, minimizing downtime.

Precision Control and Integration

Integrated solenoid valve controls and options for sensors, gauges, and mounting accessories offer precise system management. Electrical and pneumatic connectivity simplify integration into new or existing manufacturing lines, enhancing workflow with minimal noise and high repeatability.

FAQ's of 230V Hydro Pneumatic Cylinders:

Q: How are the stroke length and force output of these hydro pneumatic cylinders customized?

A: Stroke length can be tailored from 50 mm to 500 mm and force output is adjustable up to 15 tons, configurable at the time of ordering to match specific application requirements.

Q: What advantages does the electric-pneumatic hybrid power source offer in industrial settings?

A: The electric-pneumatic hybrid design combines rapid pneumatic actuation with the high force of hydraulics, leading to quicker cycles, energy efficiency, and reliable high-pressure output for tasks like pressing and forming.

Q: When should maintenance be performed and what are common service tasks?

A: Maintenance should be carried out according to application frequency and manufacturer guidelines, focusing on seal inspection, checking safety devices, and ensuring all connections remain secure and leak-free.

Q: Where are these hydro pneumatic cylinders best used?

A: They are ideal for indoor, industrial environments including automotive assembly, automation lines, and heavy-duty manufacturing where high force and fast cycle times are required.

Q: What is the process of integrating sensors and control accessories with the cylinders?

A: Sensors and control accessories are connected using standard electrical or pneumatic fittings and are easily integrated into existing automation setups via designated ports and mounting brackets provided with the system.

Q: How do the built-in safety features enhance operational reliability?

A: Features such as the pressure relief valve and emergency stop safeguard against accidental overpressure and enable immediate shutdown, thereby protecting both operators and equipment from potential hazards.

Q: What benefits can industries expect from using this hydro pneumatic cylinder?

A: Industries benefit from rapid operation (cycle times under one second), adjustable high force output, compact design for space-saving installation, and reduced maintenance downtime due to durable construction and wear-resistant seals.
