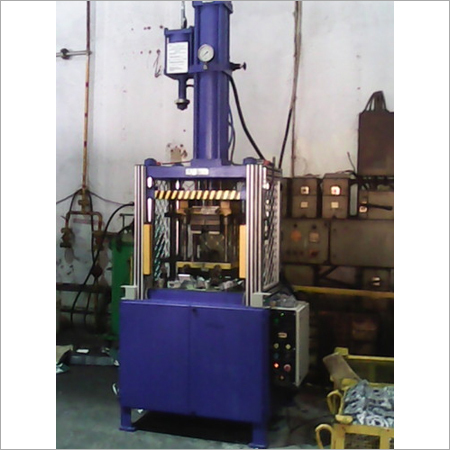

Aluminum Casting Trimming Press

Name: Aluminum Casting Trimming Press
Brand: NATIONAL PNEUMATIC SYSTEMS
Price: 250000 INR
Availability: InStock

Price 250000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aluminum Casting Trimming Press Specification

Nominal Force
40-160 Tons

Power Source
Electric

Condition
New

Dimension (L*W*H)
2000 mm x 1200 mm x 2500 mm

Power(W)
7.5 kW

Voltage
380 V/415 V/Customized

Motor
High Efficiency Electric Motor

PLC System
Available

Solenoid Valve
Included

Pre-Fill Valve
Equipped

Proportional Valve
Included

Pressure Gauge
Yes

Max Opening Distance
700 mm

Working Table Size
700 mm x 600 mm

Safety Features
Emergency Stop, Limit Switch, Light Curtain

Cycle Time
12 Seconds (Approx.)

Ram Stroke
350 mm

Application
Aluminum Die Casting Part Trimming

Weight
Approx. 3200 kg

Control System
Touch Screen Human-Machine Interface (HMI)

Frame Type
Robust Welded Steel Structure

Oil Tank Capacity
250 Liters

Cooling System
Oil Cooler Included

Aluminum Casting Trimming Press Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
40 Pieces Per Month

Delivery Time
3 Week

Packaging Details
Wooden Boxes

Main Domestic Market
All India

About Aluminum Casting Trimming Press

We are a prestigious manufacturer, exporter, supplier and trader of Aluminum Casting Trimming Press. This standard quality machine is widely utilized in different industries like metal forming industries and die casting sectors. The details specifications of our Aluminum Casting Trimming Press include

Specification

Usage/Application	Trimming Industries
Automation Grade	Automatic
Brand	National Pneumatic System
Phase	Single Phase
Voltage	230V
Power	Pneumatic source

Type of Presses :	Capacity (Tone)	Stroke (mm)	Power Stroke (mm)
Hydro Pneumatic Cylinder	2,4,8,15,30	50,75,100,150	3,6,12,24
2 Piller Presses(PLAIN,ARG,GMP	2,4,8,15,30	50,75,100,150	3,6,12,24
4 Piller Presses(PLAIN,ARG,GMP)	2,4,8,15,30	50,75,100,150	3,6,12,24
C Frame Presses(PLAIN,ARG,GMP)	2,4,8,15,30	50,75,100,150	3,6,12,24
Compact C Frame Presses(PLAIN,ARG,GMP)	2,4,8	50,75,100,150	3,6

Optimized Performance for Aluminum Die Casting

Specifically designed for trimming aluminum die cast parts, this press combines precise control with high throughput. The touch screen HMI enables streamlined setup and operation, while the robust structure ensures durability for demanding industrial environments. With fast cycle times and advanced safety features, it delivers both efficiency and operator protection.

Advanced Safety and Control Features

The trimming press incorporates a range of safety mechanisms, including an emergency stop, limit switches, and a light curtain, reducing risk during operation. The integrated PLC system and pressure gauge allow for accurate monitoring and adjustment, while the proportional and solenoid valves ensure optimal hydraulic performance. These features support consistent, reliable output.

FAQs of Aluminum Casting Trimming Press:

Q: How does the touch screen HMI control system benefit the operation of the trimming press?

A: The touch screen HMI provides an intuitive interface for operators, allowing them to easily set parameters, monitor performance, and troubleshoot issues. This simplifies operation, reduces training time, and enhances overall efficiency during aluminum die casting part trimming.

Q: What is the typical process for trimming aluminum casting parts using this press?

A: The process involves loading the die cast part onto the working table, setting the parameters through the HMI, and initiating the cycle. The ram, powered by a high-efficiency electric motor, moves with a 350 mm stroke to trim off excess material under controlled force, before the finished part is removed for further processing.

Q: When is the use of the emergency safety features necessary?

A: Safety features such as the emergency stop, limit switch, and light curtain are activated in case of hazardous situations or abnormal machine function to immediately halt operation and protect both the operator and equipment from potential harm.

Q: Where can this aluminum casting trimming press be installed?

A: This press is suitable for installation in industrial die casting facilities, particularly those engaged in aluminum part production. With its compact dimensions (2000 mm x 1200 mm x 2500 mm), it fits comfortably in most factory floor layouts, making it ideal for manufacturers across India.

Q: What are the main benefits of using this trimming press for aluminum die casting?

A: Key benefits include fast and reliable trimming with approximately 12-second cycle times, enhanced operator safety, easy control via HMI and PLC systems, and robust build quality. The efficient hydraulic system and cooling setup promote continuous, reliable operation, optimizing productivity.

Q: How does the oil cooling system contribute to the presss performance?

A: The integrated oil cooler maintains hydraulic oil at optimal temperatures during prolonged operation, reducing wear on components, preventing overheating, and ensuring consistent pressure and cycle times during intensive use.
