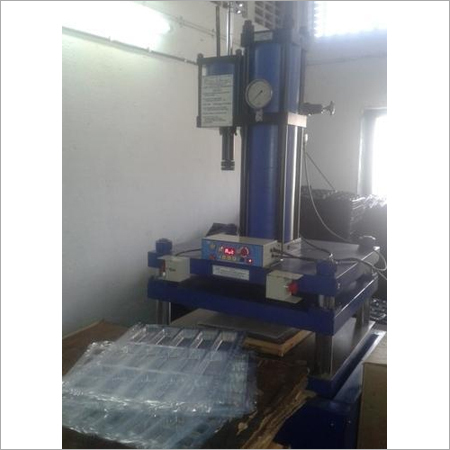

Blister Cutting Machine

Name: Blister Cutting Machine
Brand: NATIONAL PNEUMATIC SYSTEMS
Price: 250000 INR
Availability: InStock

Price 250000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Blister Cutting Machine Specification

Drive Motor
Induction Motor

Product Type
Pharmaceutical Packaging Machinery

General Use
Cutting of Blister Sheets in Packaging Units

Material
Mild Steel (MS) and Stainless Steel (SS)

Type
Blister Cutting Machine

Capacity
Up to 3,000 Blisters/hour

Weight (kg)
Approx. 750 kg

Computerized
Yes

Automatic
Semi-Automatic

Cutting Speed
40-60 Cuts Per Minute

Cutting Thickness
0.2 - 3 mm

Cutting Function
Manual and Semi-Automatic

Cooling System
Air Cooled

Drive Type
Hydraulic

Voltage
220V / 380V, 50Hz

Dimension (L*W*H)
1450 x 850 x 1300 mm

Feature
High Precision, Durable Construction, Easy Operation

Color
Blue & White

Motor
1.5 HP Electric Motor

Mechanical Precision
0.1 mm

Software Detail
PLC Based Control System

Cutting Method
Die Cutting

Control System
Programmable Logic Controller

Cutting Material
PVC, PET, Aluminum Foil, Plastic Blister

Cutting Area
600 x 400 mm

Noise Level
<70 dB

Lubrication System
Centralized Automatic

Application
Pharmaceutical, Food Packaging, Electronic Component Packaging

Packaging Type
Wooden Box or As Required

User Interface
Touch Screen Display Panel

Operating Temperature
5°C to 40°C

Power Consumption
2 kW

Finish
Powder Coated

Safety Features
Emergency Stop, Safety Guards

Installation Service
Available Upon Request

Blister Cutting Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
40 Pieces Per Month

Delivery Time
1 Week

Packaging Details
Wooden Boxes

Main Domestic Market
All India

About Blister Cutting Machine

Blister Cutting Machine Manufacturer

We are a prominent manufacturer, exporter, supplier and trader of Hydropneumatic Blister Cutting Machine. We have fabricated this machine by using top quality iron, steel and alloy. The salient features of our Hydropneumatic Blister Cutting Machine include its hassle free working system, resistance ability against wear and tear, automatic and manual operating mode and necessary safety features. This machine is suitable for cutting plastic, rubber and paper. Our offered machine is preferred by large number of clients for its industry set standard.
Specification

Usage/Application	Blister Cutting
Automation Grade	Automatic
Brand	National Pneumatic System
Air Consumption	5Bar
Phase	Single Phase
Voltage	230V

High Precision Cutting for Packaging Needs

Designed to deliver precise and reliable die cutting, this machine achieves mechanical accuracy of 0.1 mm across a generous 600 x 400 mm cutting area. Its robust hydraulic drive and induction motor mechanism ensure uniform cuts, supporting various thicknesses from 0.2 to 3 mm. Whether used in pharmaceutical, food, or electronics packaging, operators benefit from consistent results at high output speeds.

User-Friendly Touch Screen Control Panel

Equipped with a sophisticated touch screen display and PLC-based control system, the machine simplifies operation and process adjustment. From manual to semi-automatic modes, users can monitor real-time performance and manage settings easily, contributing to reduced training time and improved workflow in busy packaging environments.

Safety and Durability Assured

Safety is paramount with the inclusion of emergency stops and safety guards integrated into the machines sturdy, powder-coated body. A centralized automatic lubrication system ensures long-lasting durability and minimal maintenance. Operating quietly (below 70 dB) and efficiently (2 kW consumption), its suitable for demanding workspaces and supports a comfortable operator experience.

FAQs of Blister Cutting Machine:

Q: How does the Blister Cutting Machine ensure operator safety during use?

A: Operator safety is prioritized with built-in emergency stop functionality and safety guards. These features prevent accidental injuries by allowing immediate machine shut-down and ensuring hands and objects are kept away from moving parts during cutting operations.

Q: What types of materials can be processed on this Blister Cutting Machine?

A: The machine is compatible with various blister packaging materials including PVC, PET, aluminum foil, and plastic blisters. This versatility makes it suitable for pharmaceutical, food packaging, and electronic component applications.

Q: Where can the installation service for the machine be availed?

A: Installation service is available upon request, and can be arranged directly at your facility across India. This ensures proper setup and commissioning, optimizing performance and safety from the outset.

Q: What is the expected cutting speed and capacity of the machine?

A: The Blister Cutting Machine delivers a cutting speed of 40-60 cuts per minute and can handle up to 3,000 blisters per hour, ensuring high productivity for industrial-scale operations.

Q: How does the touch screen display panel benefit the end user?

A: The touch screen panel provides an intuitive user interface for managing operational modes, monitoring performance, and adjusting machine settings with ease, reducing setup time and streamlining workflow.

Q: What is the process for switching between manual and semi-automatic cutting functions?

A: Operators can select their preferred mode directly from the PLC-based touch screen interface. The transition is simple and enables users to adjust the cutting method according to production requirements or material type.

Q: What packaging options are provided for machine delivery?

A: Machines are typically packed in wooden boxes for safe transport, though custom packaging options are available upon request to meet specific handling or shipping needs.
